The VJ-101 D design study
Double seated strike aircraft with five lift engines behind the cockpit and two cruise engines in the rear fuselage usable for VTOL by thrust deflectors.

 wing span:
  6.90 m
675 x 450, 32k
height:
  4.58 m
fuselage lenght:
18.73 m
take-off weight :
about 14000 kg


The Advanced V/STOL Tactical Fighter Weapon System AVS
Design study for an F-104 successor with V/STOL capability as a result of an US-German joint venture between Entwicklungsring Süd GmbH and Fairchild Hiller Republic Aviation Division.
675 x 450, 29k
675 x 550, 33k
675 x 450, 30k
A 400 design study from the EWR.

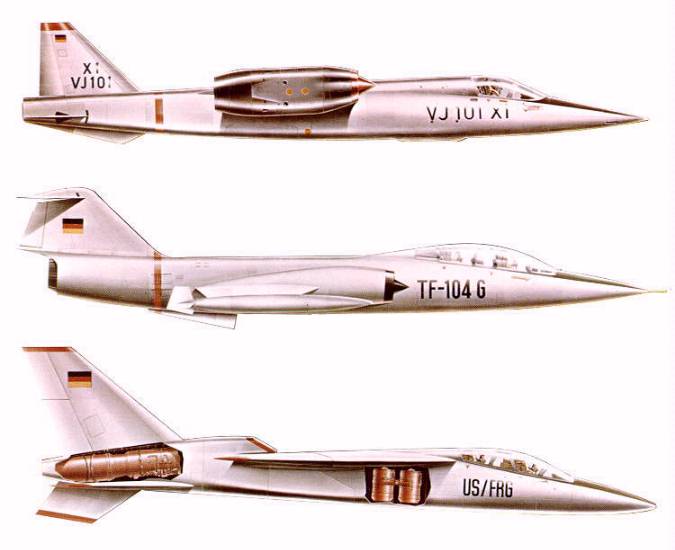

Comparison between VJ-101C, TF-104G and the AVS.

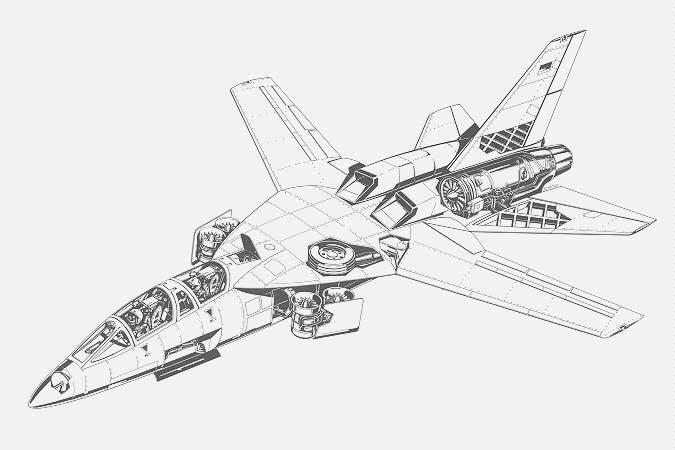

Cutaway drawing of the AVS.


From AVS to Tornado
Finally, all these V/STOL activities affected the European MRCA (Multi-Role-Combat-Aircraft) project which started in 1968.
675 x 500, 26k
675 x 500, 24k
675 x 475, 41k

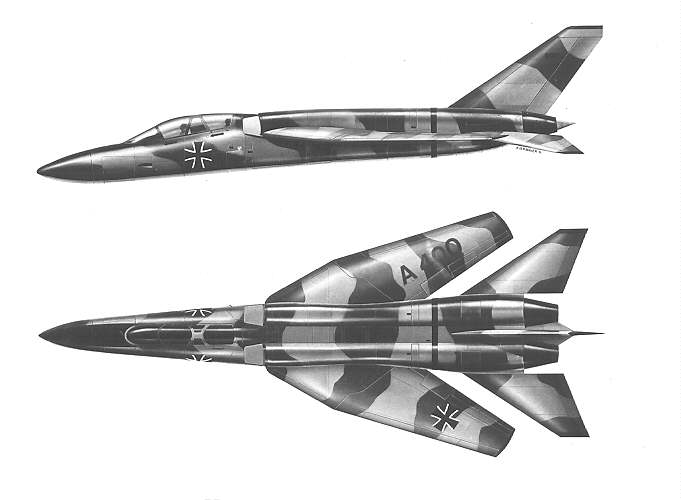

The EWR A 400 design study.

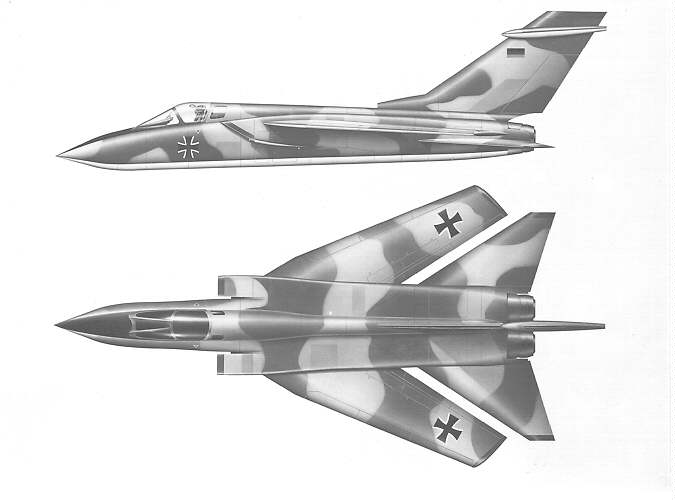

Early MRCA-design (single-seater).

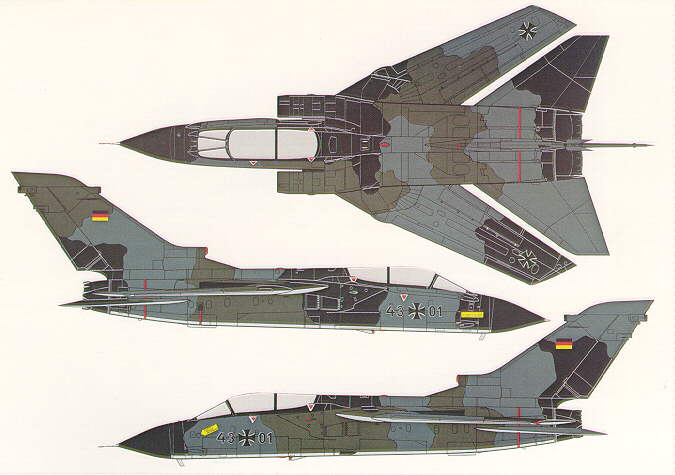

The MRCA Panavia Tornado today.
